Chequered Steel Plates
These plates are extensively used in domestic as well as commercial and industrial purposes. These plates are popularly known as high strength reinforcement plates that is said to have a tough outer core and a soft inner core. Its key attributes are corrosion resistance, weather resistance, high skid resistance, robust construction and a clean surface.

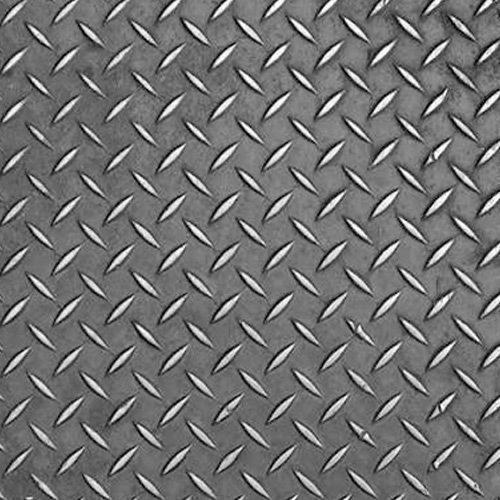

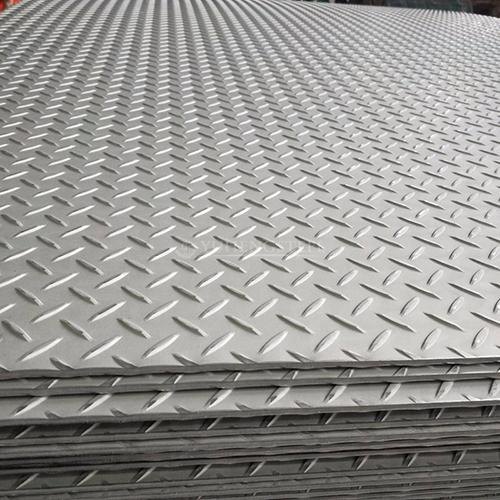

Chequered plates are lightweight metal plates with good anti slipping and decorative feature. One side of a chequered plate is raised regular diamonds or lines and the other side is plane. Our plates are neatly rolled and delivered to the specified dimensions. The finished materials are free from harmful surface defects such as cracks, surface flaws, imperfect edges, etc.

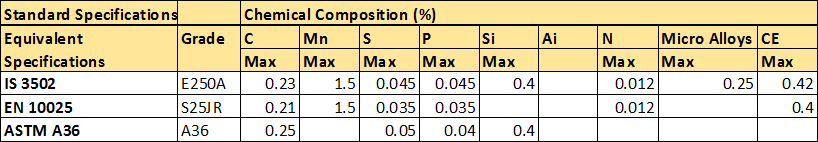

Grades
- IS 3502 | EN 10025 | ASTM A36
Specifications

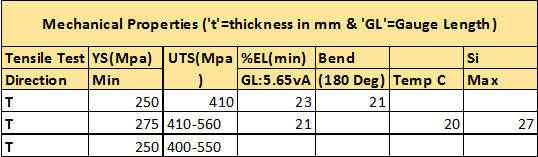

Mechanical Properties
- Width - 1250mm to 1500mm
- Length - Can be cut to sheets according to requirement
- Max. Weight - 25 MT per coil
- Material - Mild Carbon Steel
- Thickness - 2.8mm to 10mm
Applications
- Automobile industry
- Gratings over closed gutter
- Construction and cement firms
- Structural applications
- Industrial flooring
